HPLC 1511
Economical and durable, reasonable price, and stable qualityThe best choice to reduce the input and get a quick return on investment.
Key words:
Gear tooth shaft, worm gear
Classification:
Product Description
| Specifications | |

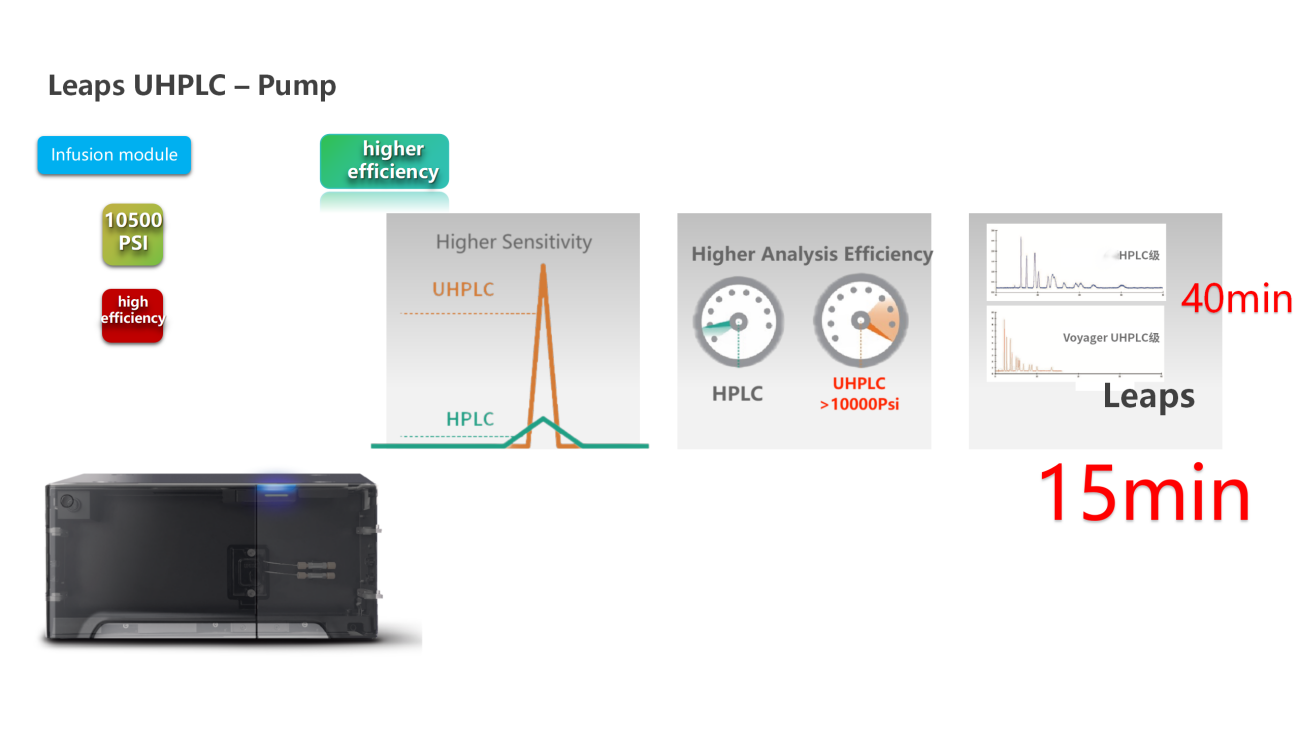

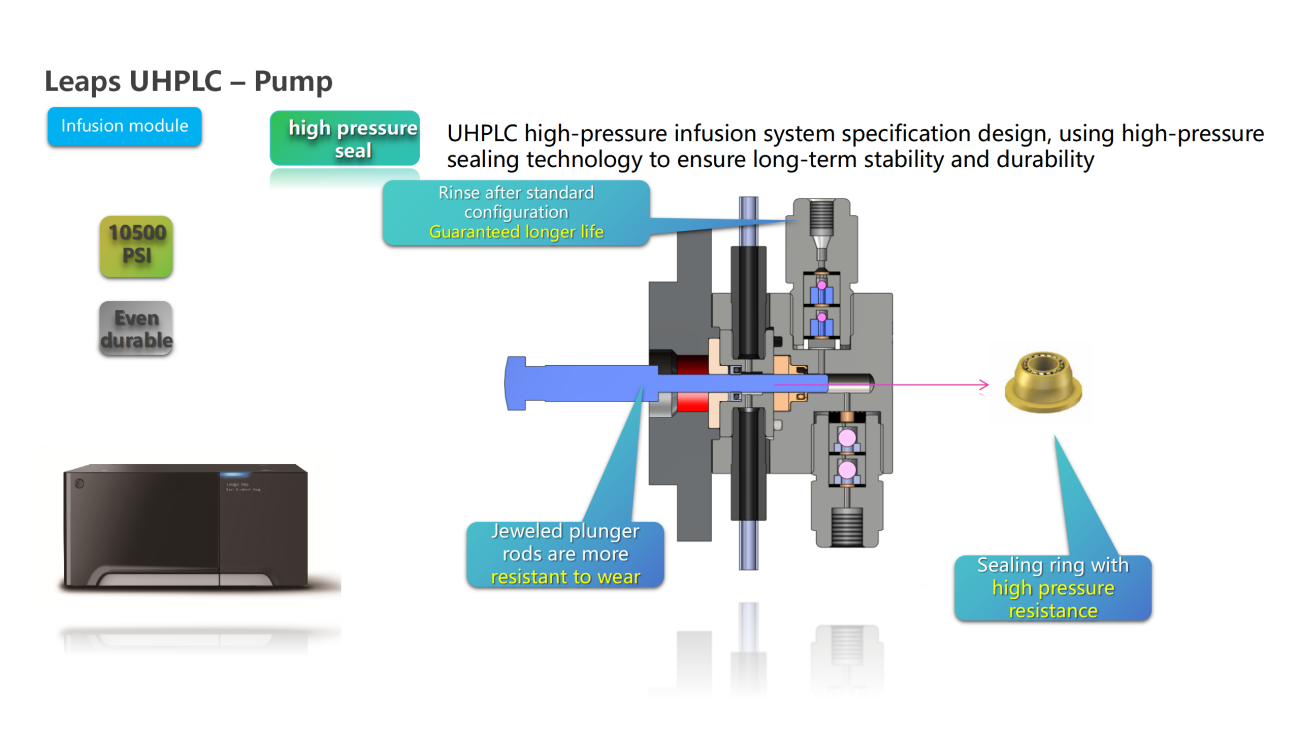

| Maximum operating pressure | 10,500psi(720Bar） |
| Operating flow rate range | 0.001 mL/min - 10.000 mL/min (increment 0.001mL/min) |

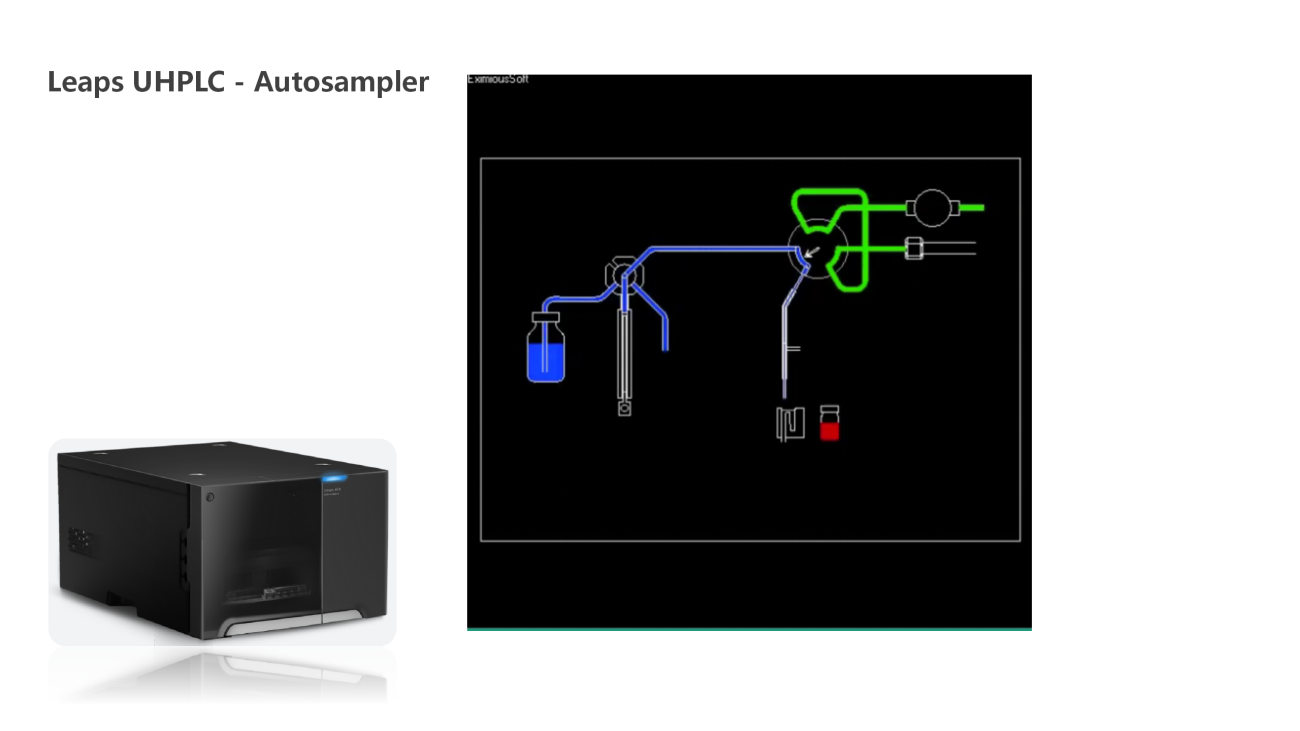

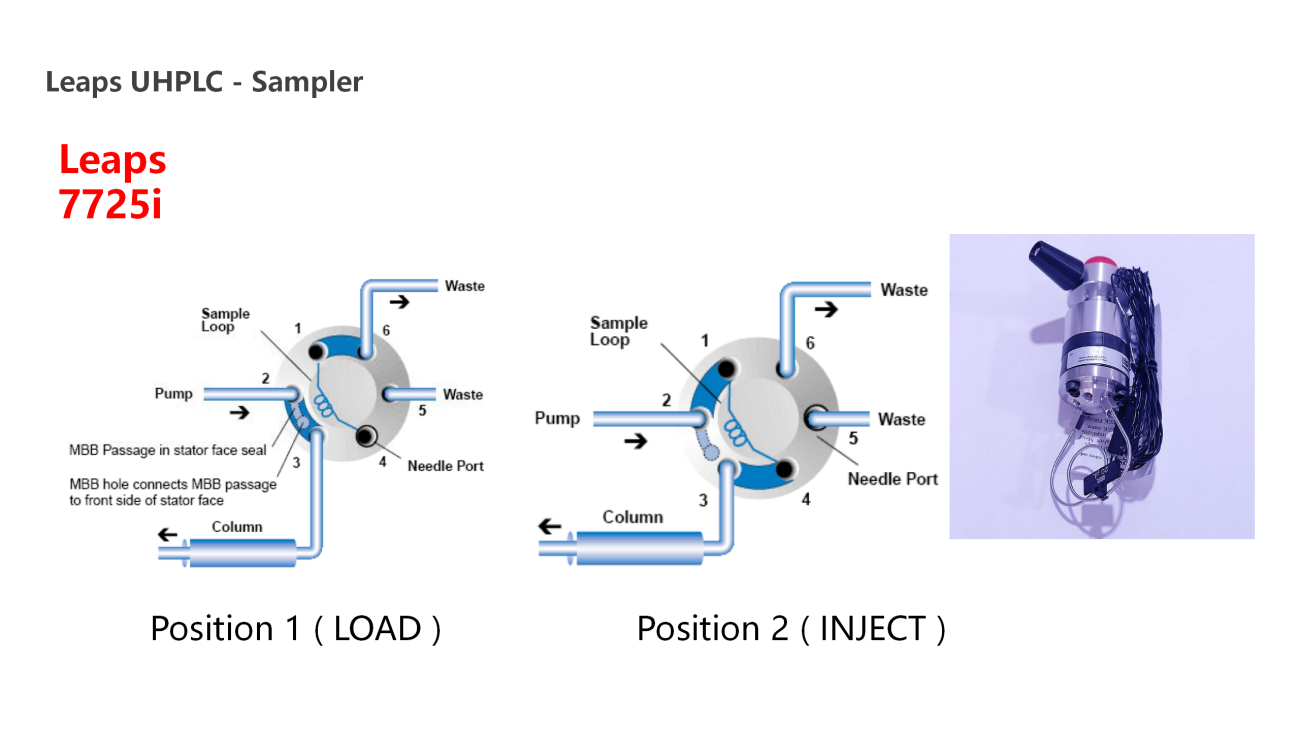

| Injection type | Flow-through needle |

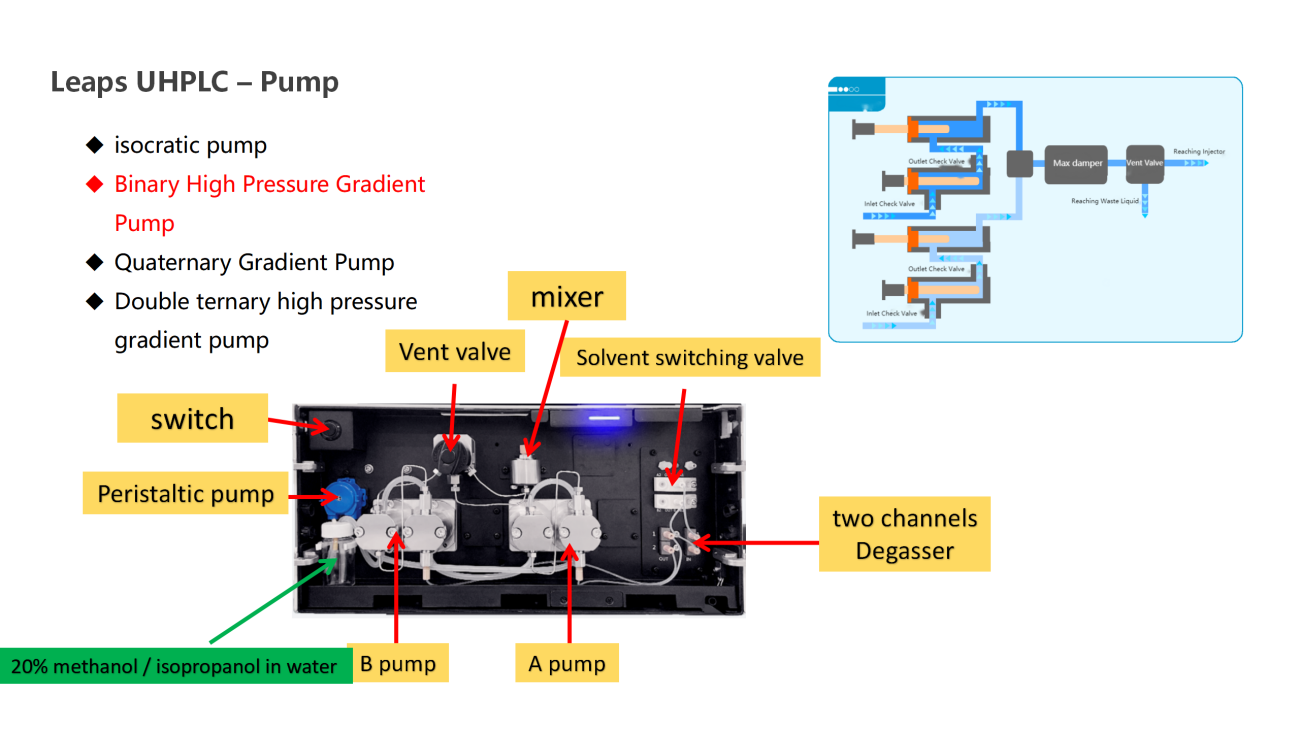

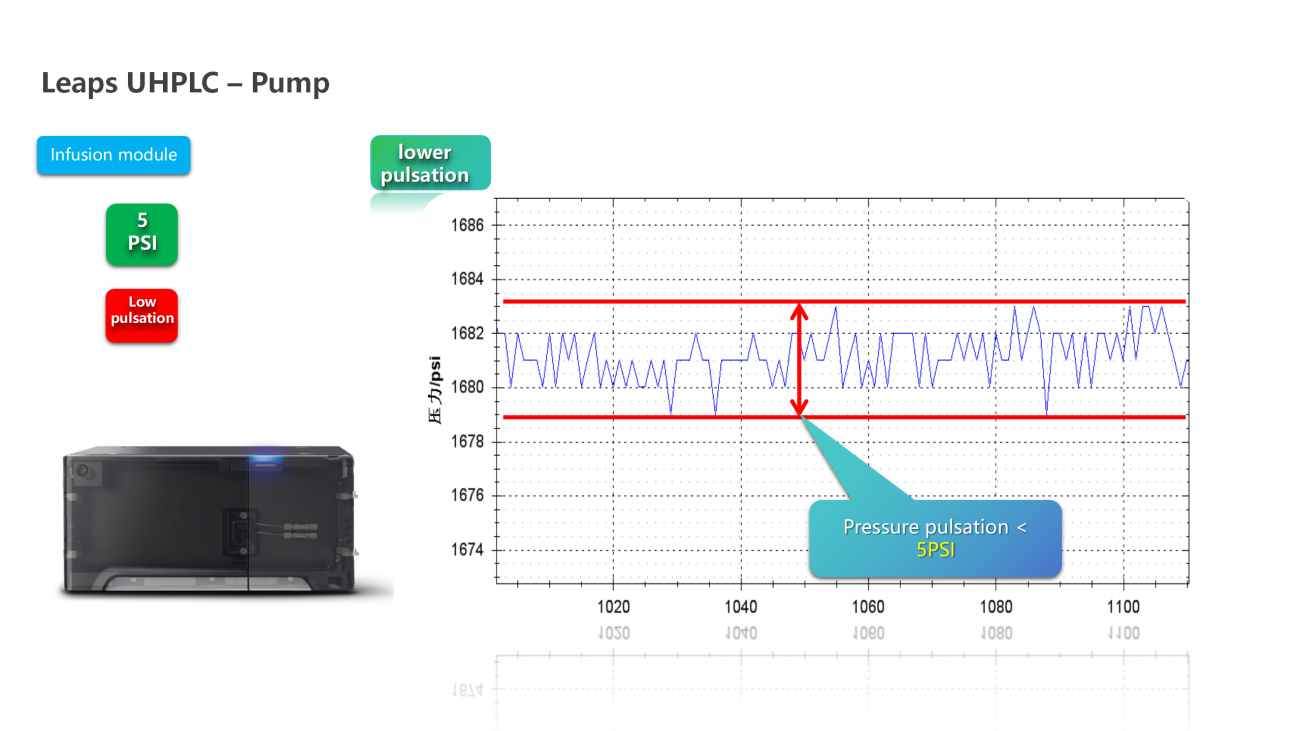

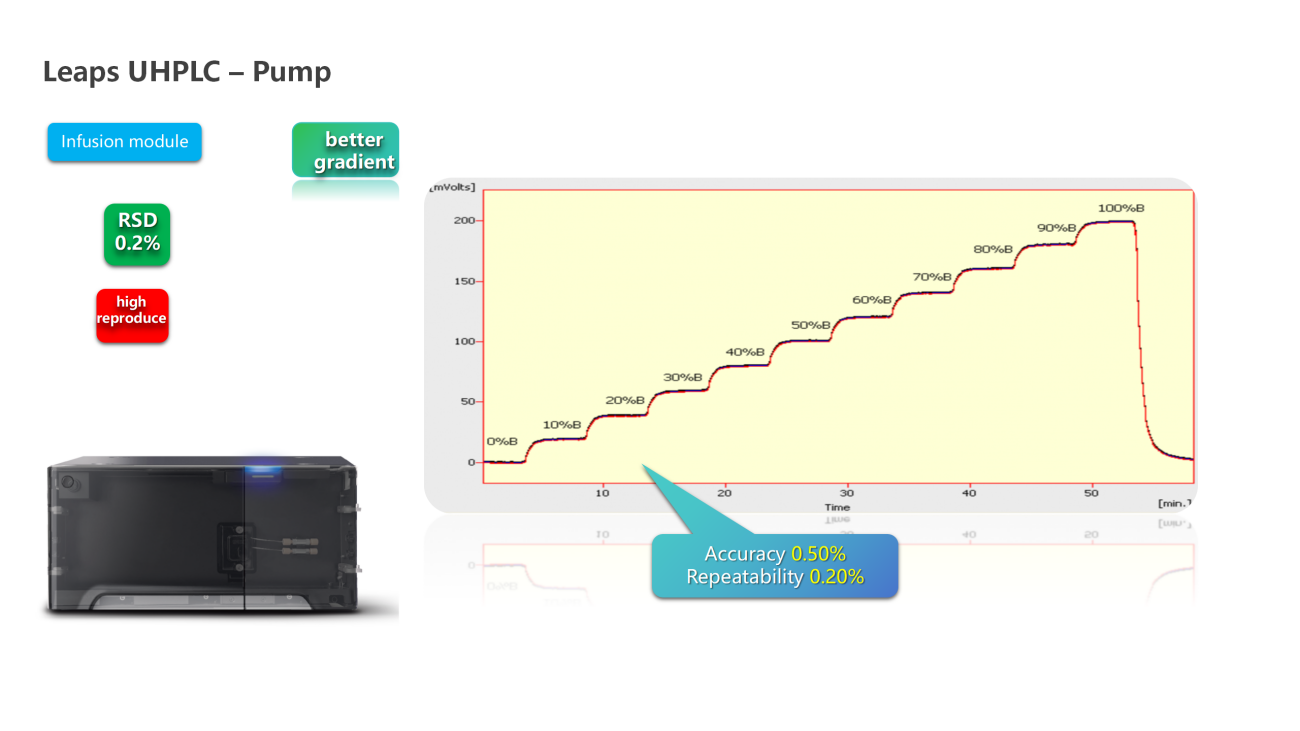

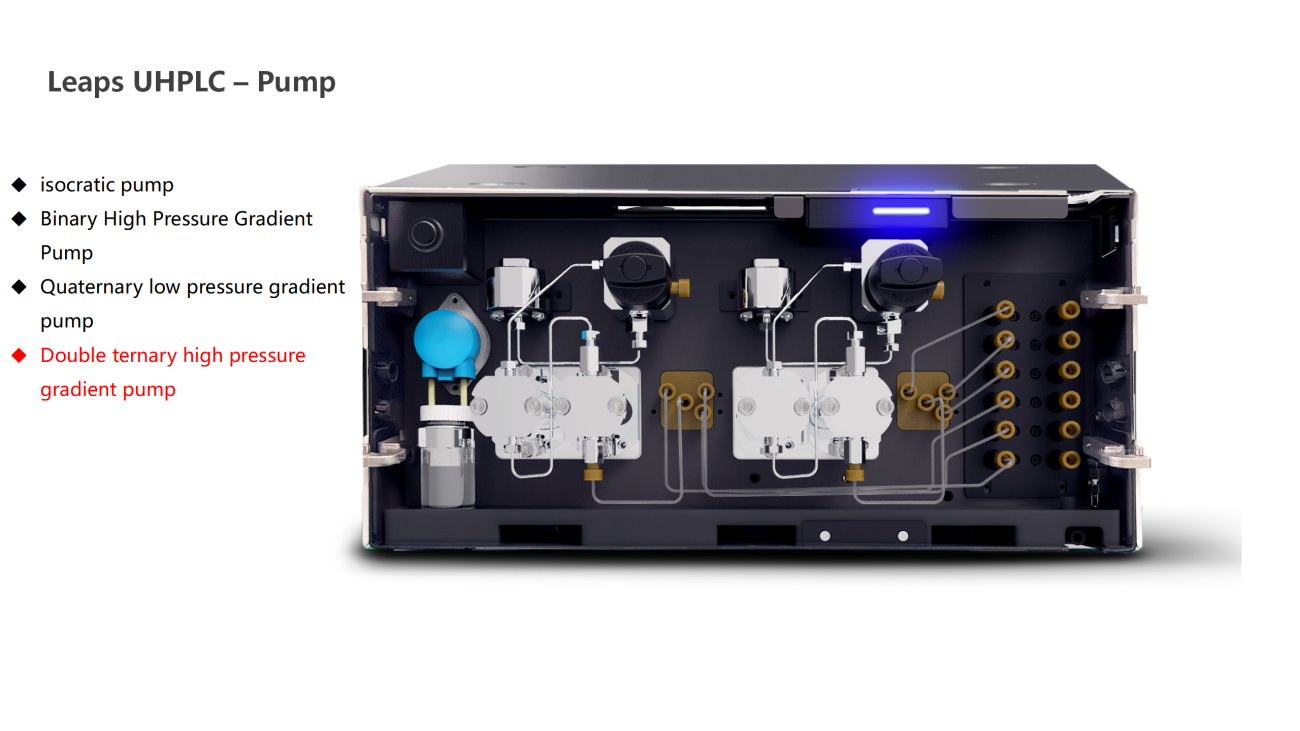

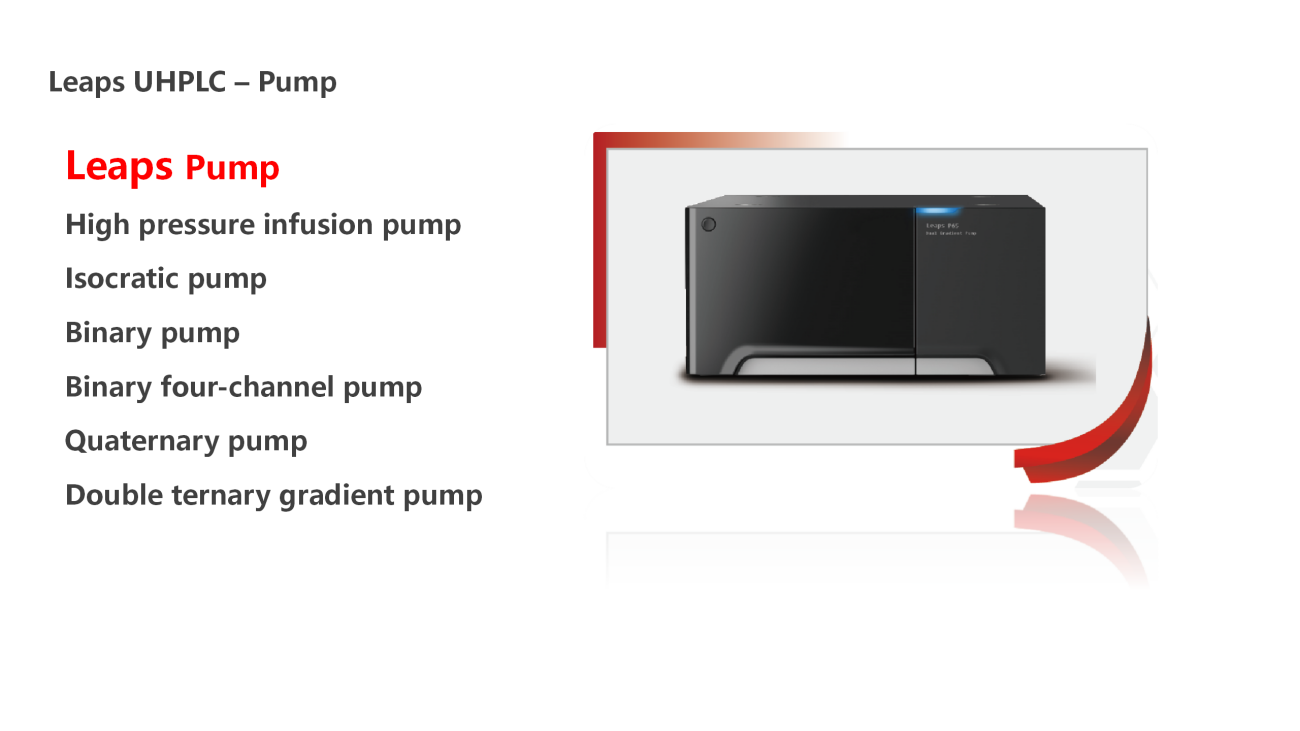

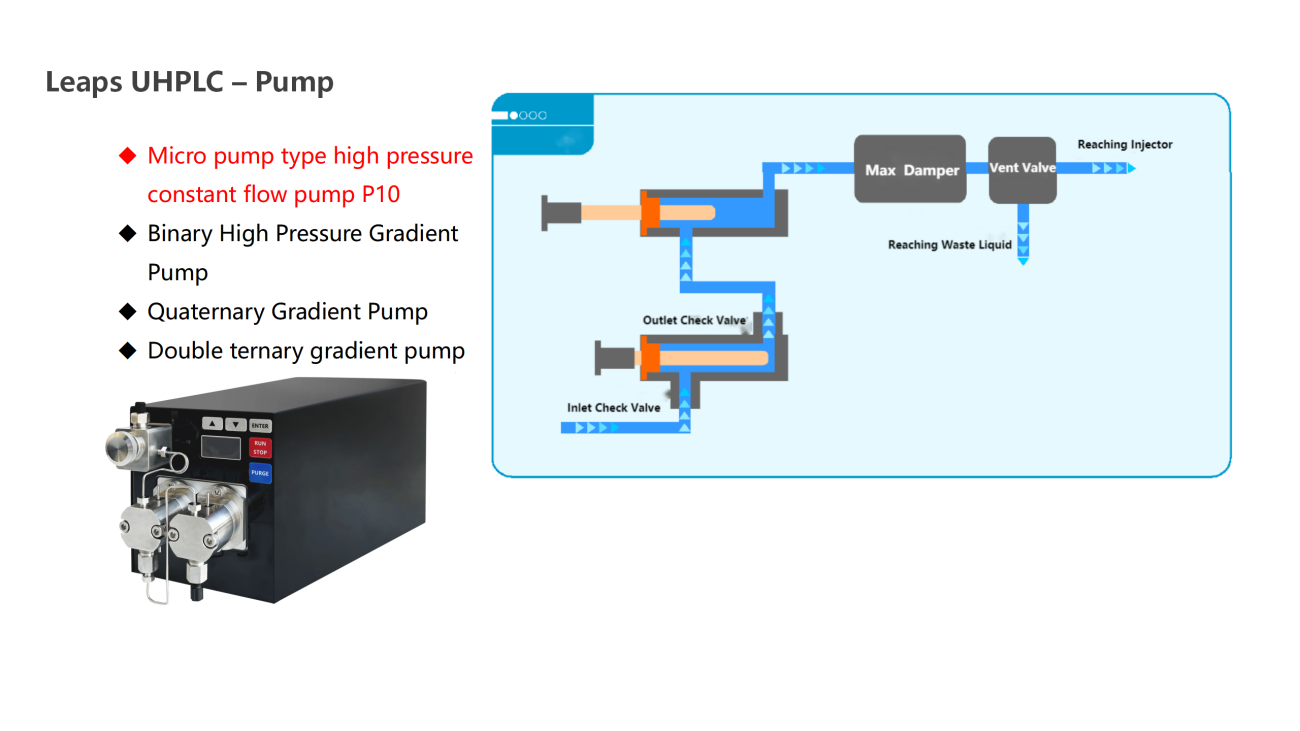

| Pump options | constant flow isocratic;binary;quaternary;dual ternary gardient;isocratic |
| Maximum operating pressure | 12,000 psi |
| pH range | 1 to 13 |
| Operating flow rate range | 0.001 to 10.000 mL/min |
| Injection type | Flow-through needle |
| Sample flow path | Stainless steel |

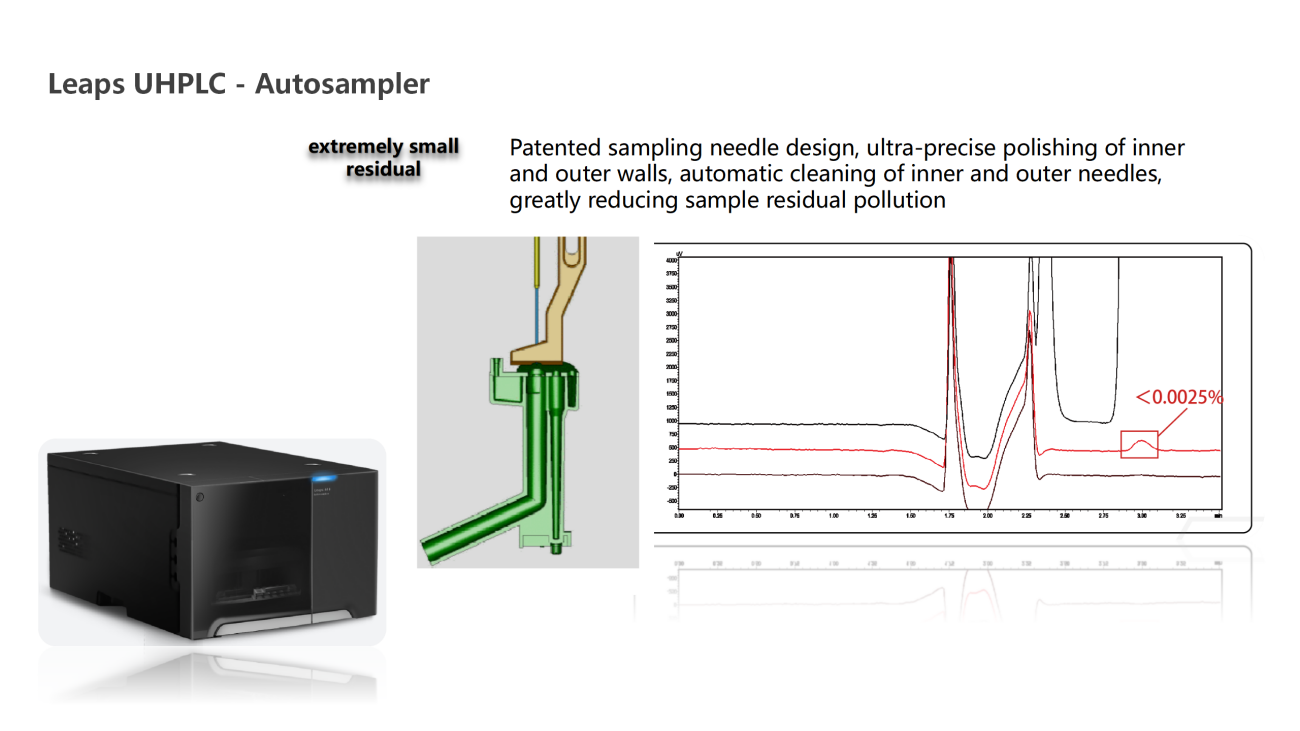

| Sample carryover | ≤0.002% [Caffeine] under UV conditions |
| Sample compartment | 4 to 40 °C |

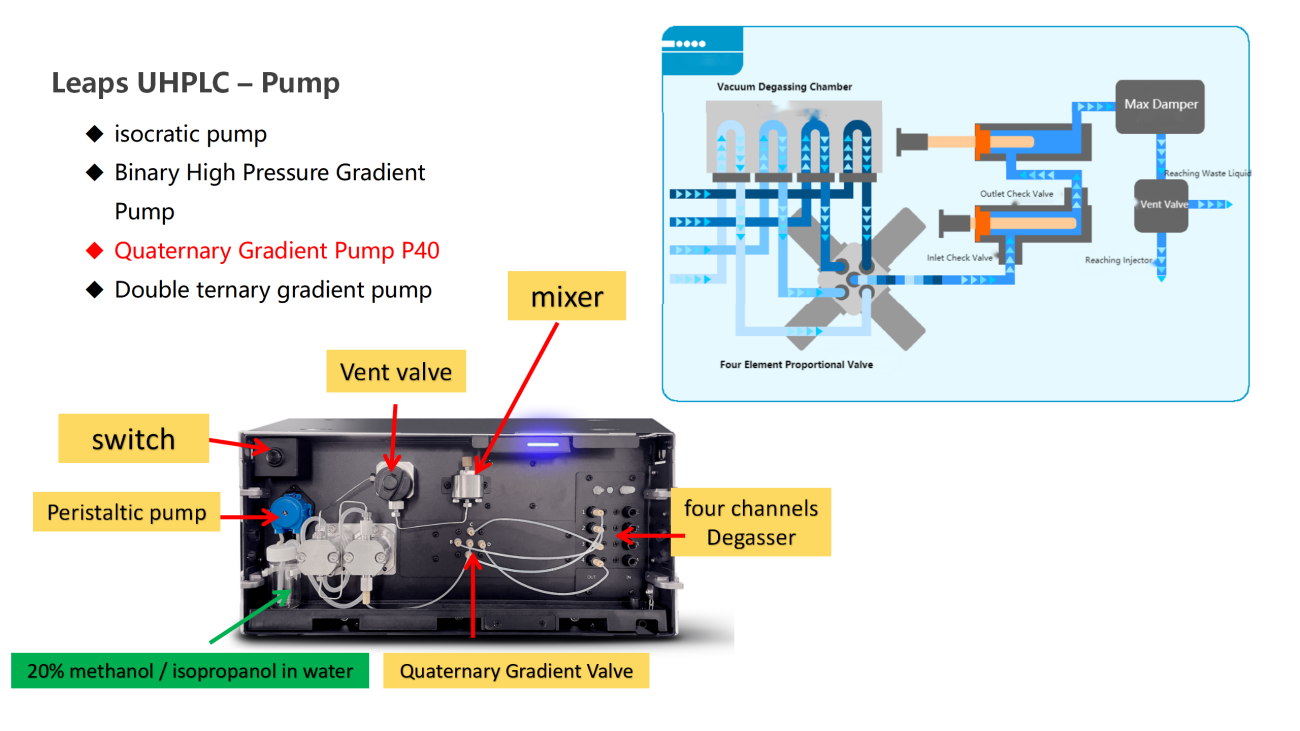

| Pump options | Quaternary |
| Solvent conditioning | Passive pre-heating |
| Column tracking | Yes, with RFID enabled eConnect Waters Columns |

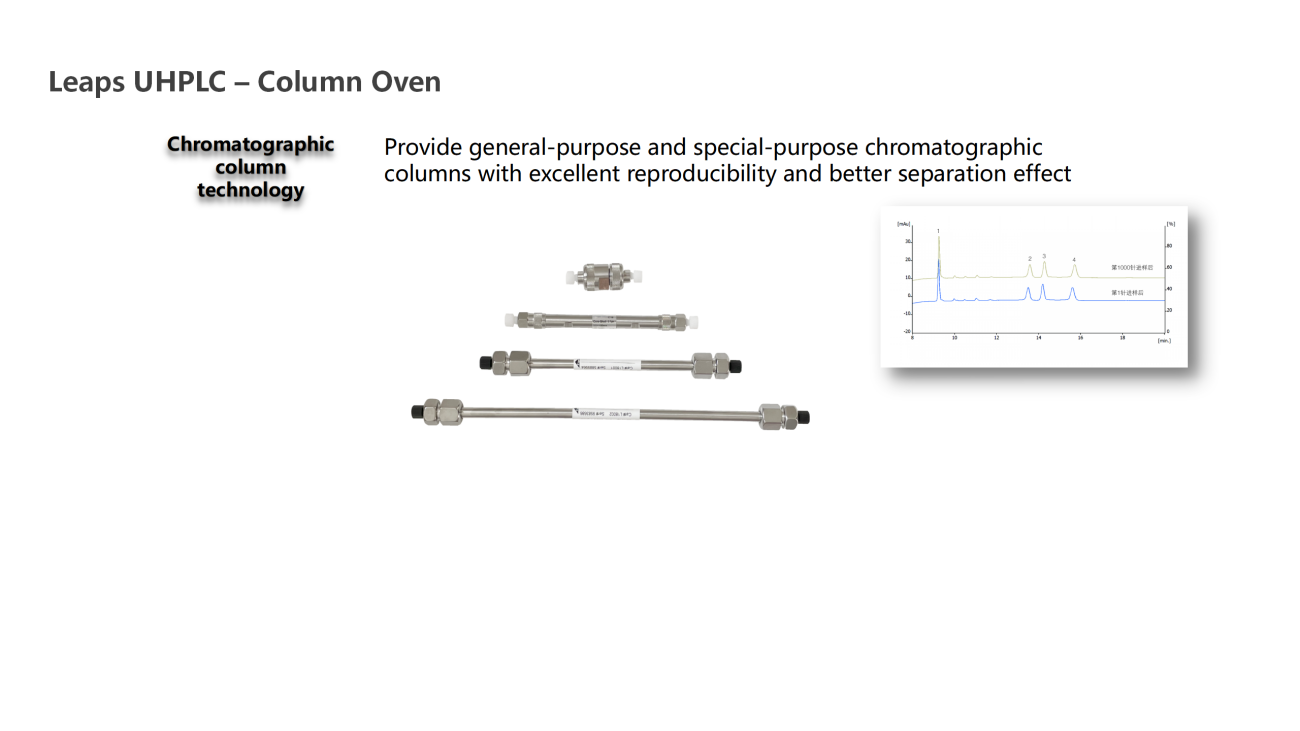

| Column capacity | 1 column up to 300 mm length, up to 8 mm internal diameter (I.D) |

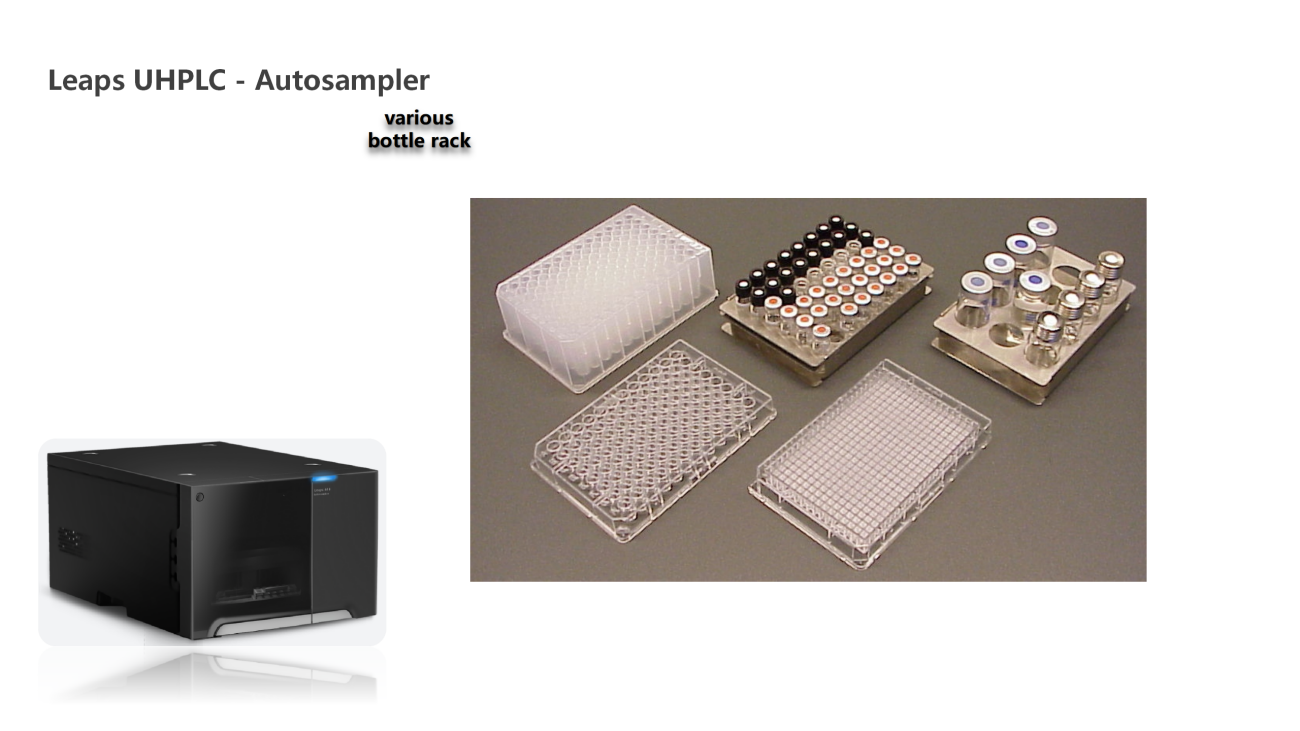

| Maximum sample capacity (any three of the following) |
48-position, 2.00-mL vial holder |
| 54-position, 2.00-mL vial holder | |
| 96-well plate | |
| 384-well plate | |
| 48-position, 0.65-mL micro-centrifuge tube plate | |
| 24-position, 1.50-mL micro-centrifuge plate | |

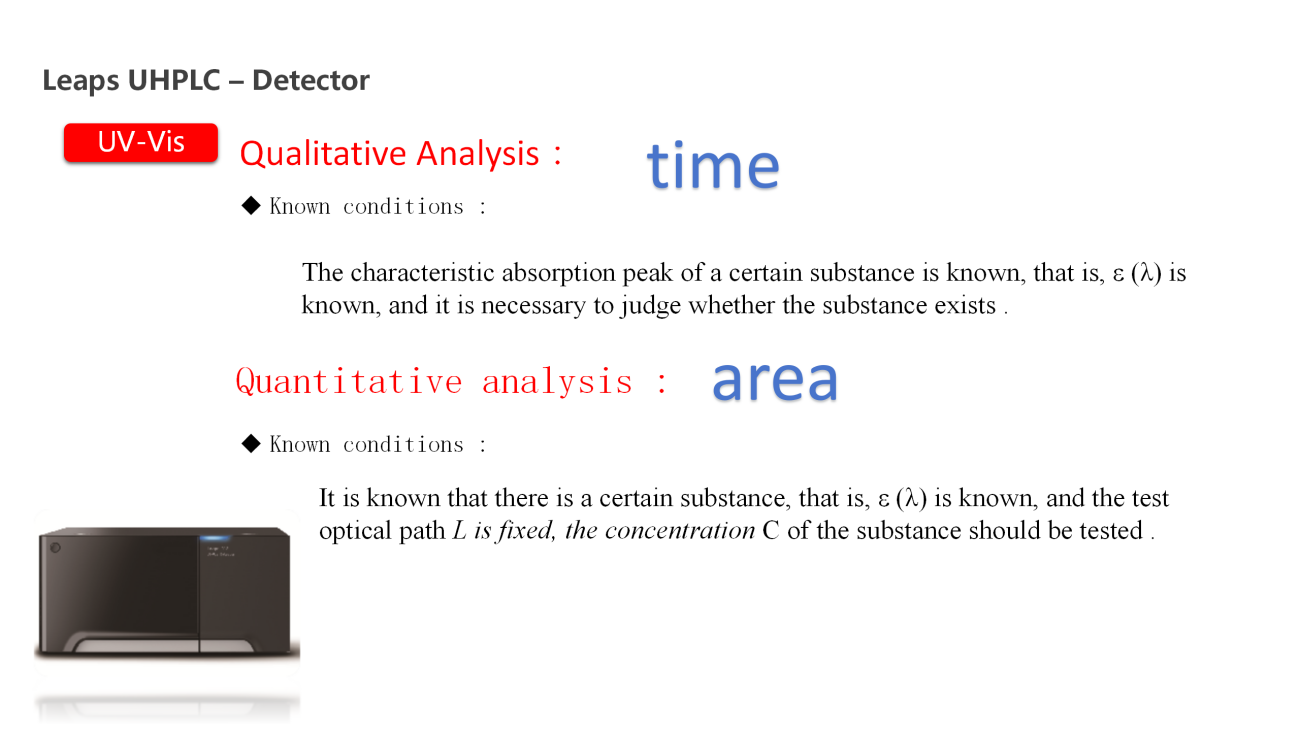

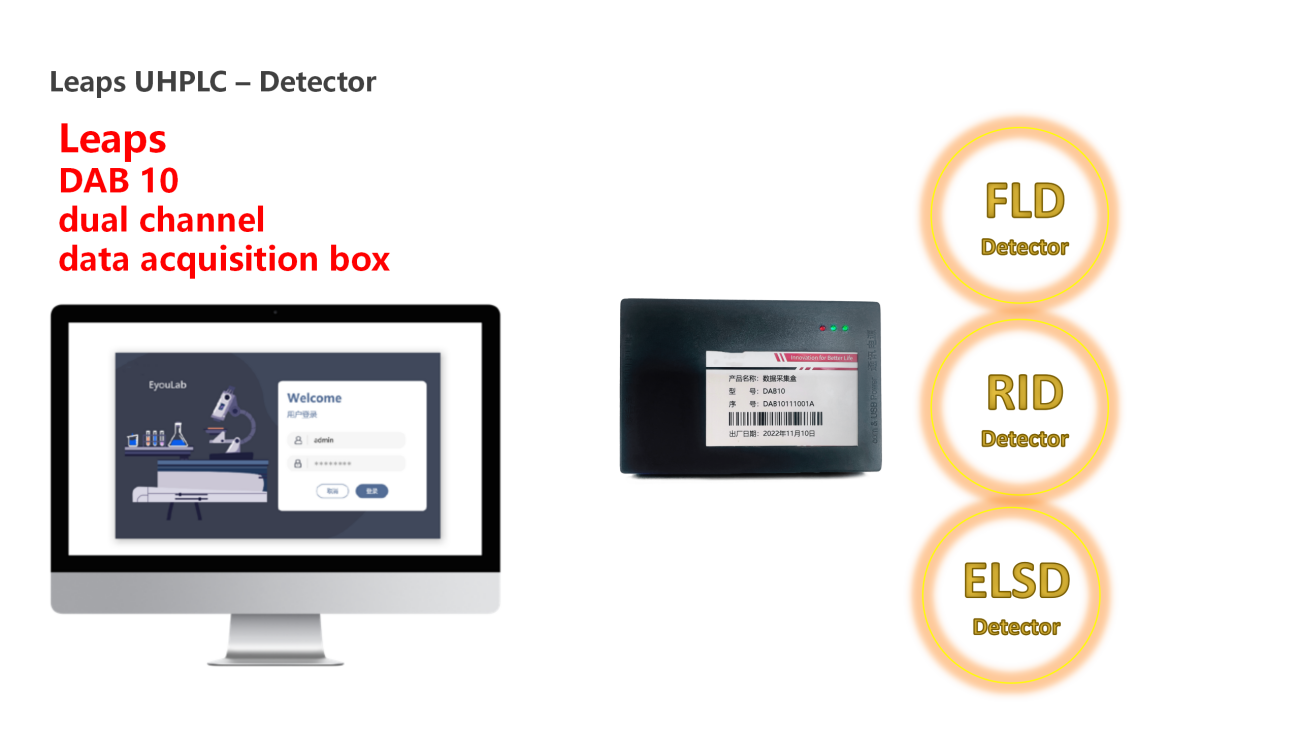

| Detector options | PDA Detector, TUV Detector |
| Informatics compatibility | Empower Chromatography Data System (CDS) |
| (Feature Release 4 with Windows 10 and later) | |
| Physical Specifications | Height: 74.2 cm (29.23 in.) |
| Width: 49.9 cm (19.64 in.) | |
| Depth: 63.5 cm (24.99 in.) | |
| Weight: 72.5 kg (160.0 lbs.) |
